제품소개


고체 열전도도 분석기

재현성 +/- 1.5 %(RSD)
정확도 +/- 2 %
측정범위 0.1 ~ 10 W/mK
가열기전류정밀도 +/- 0.01 %
응용분야 다양한 고체샘플의 열전도도 측정 분야.

첨부1 카다로그


Content

 Features



◇ Transient line source method(needle probe).
◇ New high precision evaluation algorithm with accuracy of +/- 2%.
◇ No reference or calibration tests required.
◇ Interchangeable probes for lab and field use available.
◇ For solids, fragments, power and viscous liquids in the range of 0.1 to 10 Wm-1K-1.
◇ Unattended operation(fully software-controlled).
◇ Automatic monitoring of the sample's temperature drift.
◇ Result quality analysis: graphics software makes frequent disturbances visible to the user.
◇ Multi-user license for comprehensive software package included.

 Consist of ;

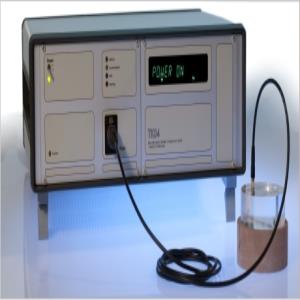

      TK04            Measuring Unit
      VLQ             Full-space type Probe
      HLQ             Half-space type Probe
      Mini HLQ      Half-space type for small sample
      Field VLQ     Full-space type for in-situ use
      Software
